Toolbox Lid Gas Springs: Force, Mounting, and Replacement Guide
Choose toolbox lid gas springs by measuring lid weight, hinge geometry, mounting points, force, stroke, fittings, clearance, and safe opening behavior.
Start with the Actual Toolbox Lid

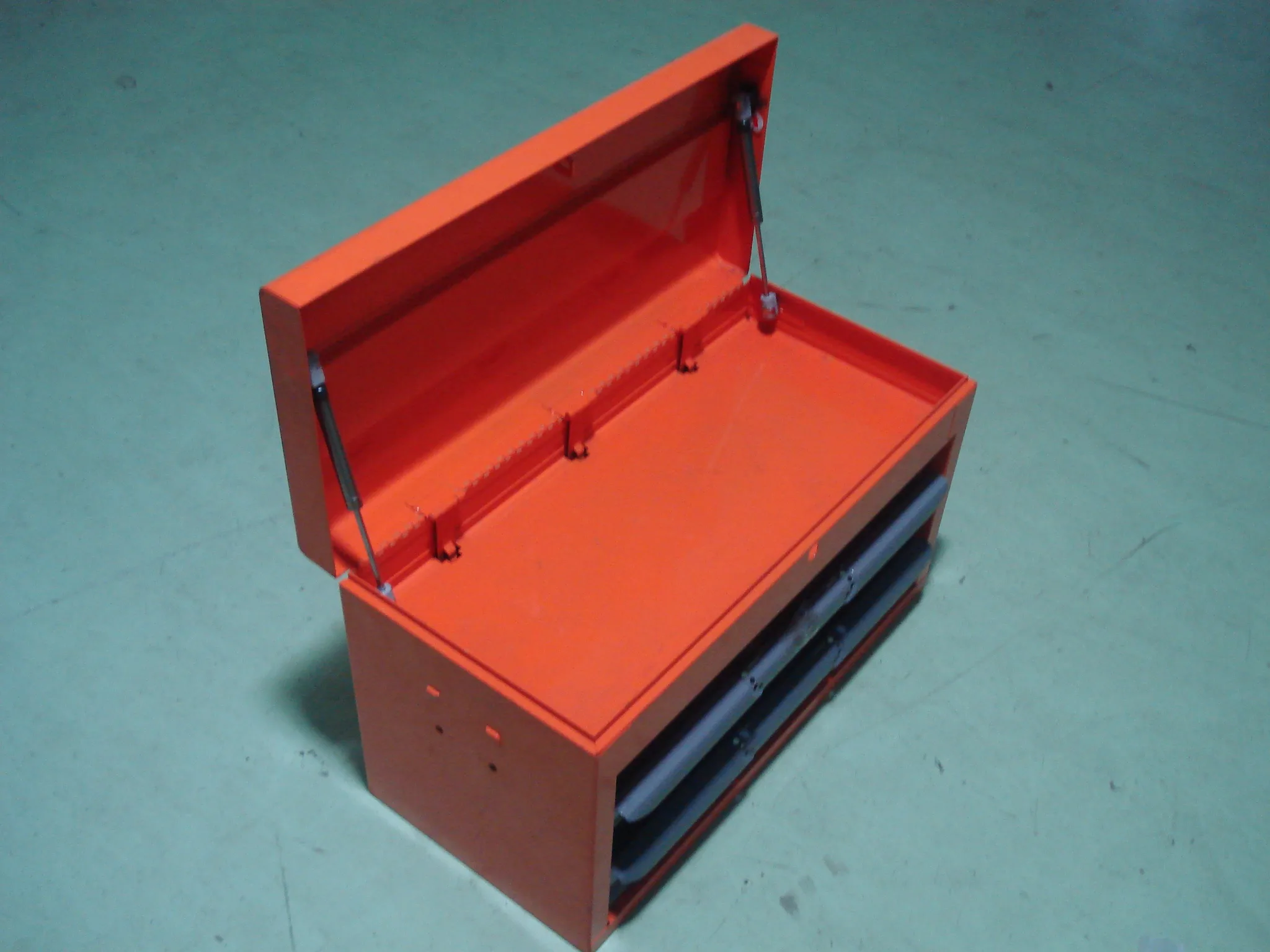

Toolbox lid gas springs, also called toolbox lid struts, support storage-box lids, service compartments, truck boxes, industrial cabinets, and similar hinged covers. A successful replacement or OEM design depends on the real lid geometry. Lid weight alone is not enough: hinge friction, centre of gravity, handle position, lid depth, bracket location, and the number of struts all affect how the lid moves.
Measure with the toolbox installed as it is used. Record the lid mass, hinge location, fully closed and fully open positions, and the centre-to-centre distance between mounting points at both ends of travel. The difference is the working stroke. Where an existing strut is available, note its printed force marking, extended length, compressed length, and end fittings. Use the gas spring dimensions guide to standardize these measurements.
Choose Force from the Lever Arm
The lid creates a turning moment around its hinge. A strut supports that moment only through the perpendicular distance between its line of action and the hinge. This distance changes as the lid opens, so a lid can feel too heavy near closed even when it rises quickly near open. The gas spring force calculator is a useful starting point, but sample testing with the real toolbox is the final check.
Too little force leaves the lid difficult to open or unable to stay at the service position. Too much force can make closing difficult, create sudden opening, or transfer unnecessary load to hinges and brackets. Do not solve a geometry problem by simply increasing the force rating.
Plan the Mounting Points
Mounting position determines force, stroke use, clearance, and side loading. Check the lid from fully closed to fully open with the proposed cylinder diameter and fittings in place. The strut must not bottom out before the lid closes, extend beyond its intended travel, collide with stored items, or bind as the lid moves.
Use fittings that allow the required articulation. Ball joints are often helpful where the lid moves through changing angles. Make sure brackets and fasteners are designed for the maximum transmitted load and that the lid is independently supported during installation or service. The gas spring mounting guide covers practical orientation, clearance, and safety checks.
Consider the Installation Environment
Truck boxes, outdoor storage, workshops, and mobile equipment can expose lid struts to dirt, water, vibration, impact, and temperature changes. State the exposure and cleaning conditions when requesting a part. Protect the piston rod from scratches, paint, adhesive, and abrasive debris. If a lid uses two struts, maintain matched geometry and replace the pair together when balanced motion is important.
For a new toolbox design, prototype the lid with actual hinges, seals, handles, and interior clearance—not a bare panel alone. Small production changes in lid mass or bracket position can change operating feel. Define the desired open angle and whether users need a controlled open or controlled close motion.
Information to Send for an RFQ
Send the lid weight, overall dimensions, hinge-to-centre-of-gravity estimate, open angle, extended length, compressed length, stroke, existing part marking if applicable, mounting photos or coordinates, preferred fittings, environment, and annual quantity. This provides the basis for a focused review rather than a catalogue-only match.
See the toolbox gas spring application page for the commercial landing page, browse gas spring product options, or request a toolbox lid strut quotation with the measurements above.
Frequently Asked Questions
Can I replace a toolbox strut using only the force printed on it?
No. Match the extended and compressed lengths, stroke, fittings, and mounting geometry as well as the force. A force-only match can cause poor motion or structural interference.
Should the rod point down when the toolbox is closed?
Rod orientation depends on the design and supplier instructions, but a common installation approach places the rod lower in the resting position to support seal lubrication. Confirm the actual geometry and clearance before final assembly.
How many struts does a heavy toolbox lid need?
The number depends on lid width, mass, hinge and bracket design, desired motion, and structural load distribution. Evaluate the complete lid assembly rather than selecting by lid size alone.
Discuss this gas spring application with our engineering team.
