Marine Hatch Gas Struts: Specification Guide for Boat Hatches
Specify marine hatch gas struts by assessing hatch mass, geometry, saltwater exposure, fittings, brackets, corrosion requirements, drainage, and safe service access.
A Marine Hatch Is a Complete System

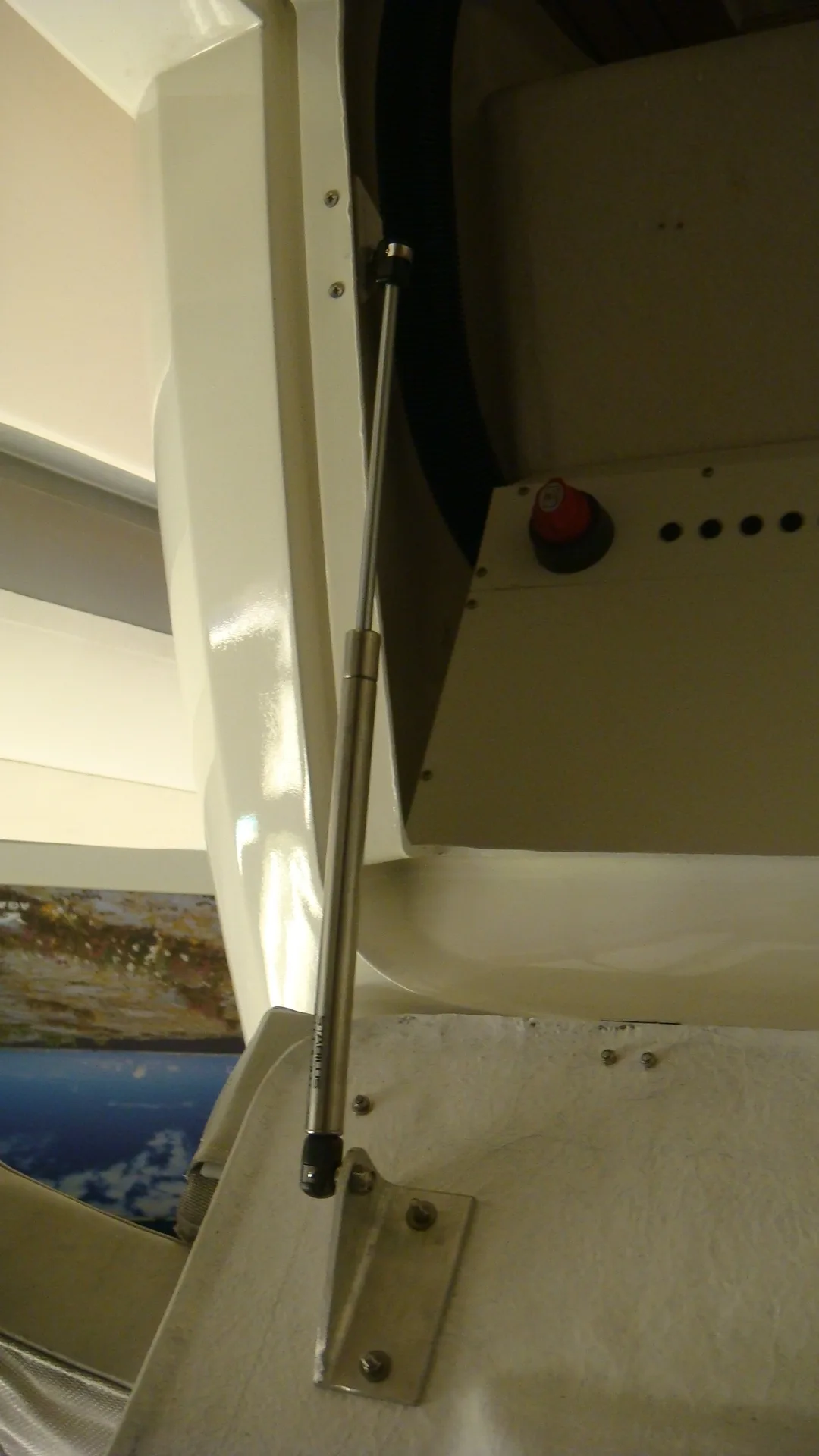

Marine hatch gas struts support overhead hatches, engine covers, lockers, access panels, companionway covers, and storage compartments. The correct part is selected from the hatch system as installed—not from force alone. Hatch weight, hinge position, centre of gravity, opening angle, seal compression, wind load, mounting space, and the number of struts all influence the operating result.
Begin with a drawing or photos showing the hatch fully closed and fully open. Measure the centre-to-centre mounting distance in both positions, the hinge location, the estimated hatch mass, and the available space around the cylinder and rod. Use the gas spring force calculator to estimate the required lifting moment, then prove the final configuration on the real hatch.
Saltwater Exposure Needs a System Review
Marine conditions can expose a strut, its fittings, brackets, fasteners, and surrounding structure to moisture, salt residue, UV, temperature variation, and cleaning products. Do not specify a material based on the cylinder alone. Describe the actual service environment and any material or corrosion requirements that the vessel or equipment owner has defined, then evaluate the complete load path.
Drainage and ventilation matter too. Avoid mounting arrangements that trap water around fittings or allow debris to damage the rod. Keep the rod clean and free from scratches, impact damage, paint, or adhesive. A damaged seal surface can reduce the useful life of a sealed gas strut.
Match Force and Opening Behaviour
A hatch may be difficult to lift near closed, where the strut has the least leverage, then accelerate near open as the lever arm changes. Excess force can make a lightweight hatch difficult to close or open too abruptly. Insufficient force can leave the hatch unstable at the intended service position. Define whether the application needs controlled extension, controlled closing, a specific hold-open angle, or an independent mechanical retaining device.
For hatches that can affect safe access or service work, do not assume the gas strut is the sole restraint. The equipment or vessel designer should assess the use case, pinch zones, wind effects, maintenance procedure, and any independent support required for the specific installation.
Check Fittings and Bracket Strength
End fittings transfer the strut load to the hatch and fixed structure. Choose an interface with enough articulation for the entire motion and verify that the fitting does not reach its angular limit before the hatch reaches full travel. Ball joints can accommodate changing angles; eyelets, clevises, and blade ends need bracket alignment that prevents side loading. Review the gas spring end fittings guide before finalizing the mounting details.
Evaluate brackets, fasteners, backing structure, and hole locations at the highest force condition. Check clearances around seals, handles, wiring, hoses, and stored equipment. A prototype installed with the real hatch is the appropriate way to find interference and validate the desired opening feel.
Send a Complete Quote Request
For a marine hatch strut RFQ, provide hatch mass, hinge and mounting coordinates, closed and open photos, target opening angle, number of struts, extended length, compressed length, stroke, end-fitting needs, environmental exposure, and annual quantity. Include any system-level material or documentation requirements that must be reviewed before approval.
Visit the marine gas strut application page, compare gas spring product families, or send a hatch drawing for quotation to begin the selection discussion.
Frequently Asked Questions
Are all gas struts suitable for a boat hatch?
No. The selection should consider hatch geometry, exposure, fittings, brackets, desired motion, and the requirements defined for the vessel or equipment. A visually similar strut may not be suitable.
How do I measure a replacement hatch strut?
Measure centre-to-centre length at full extension and full compression, calculate stroke, note force marking and fitting type, and photograph the installed mounting points. Check that the hatch is independently supported before removing the old part.
Does a stronger strut make a hatch safer?
Not necessarily. Excess force can make a hatch difficult to close and increase bracket or hinge load. Select and validate the force for the actual geometry and intended motion.
