Lift Gas Spring
Heavy Duty Combination Flat End Gas Spring
Heavy duty combination flat end gas spring for machinery covers, steel lids, access panels, storage doors, and OEM custom lift support projects.
Product Overview

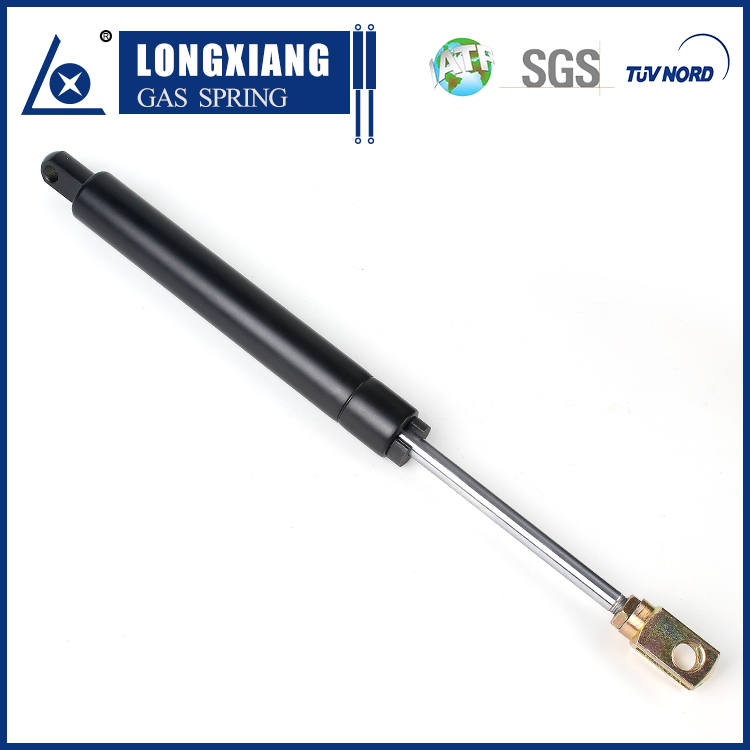

Heavy Duty Combination Flat End Gas Spring is designed for stronger covers and industrial panels where a compact flat-end or mixed fitting arrangement is easier to package than two standard ball sockets. It is commonly considered for machinery guards, steel service doors, container-style access panels, toolboxes, generator covers, and equipment lids that need controlled lifting support. Because heavy panels create high bracket load, LX Gas Spring reviews the force, rod diameter, tube diameter, end fitting geometry, bracket thickness, and open/closed mounting distances before production.
For heavy-duty flat-end assemblies, the bracket and pivot must be checked as carefully as the gas spring. Confirm blade thickness, hole diameter, washer stack-up, side clearance, rod buckling risk, paired-strut symmetry, and whether a mechanical safety prop is required.
Key Features
- Heavy-duty lift support for steel covers, machinery guards, and access doors.
- Combination flat-end fitting layout for narrow brackets or low-profile mounting areas.
- Custom force, stroke, length, rod size, tube size, and surface finish review for OEM projects.
- Suitable for applications where bracket strength and side-load control are critical.
Technical Specifications / Product Details
- Product type: heavy-duty lift gas spring with combination flat-end fitting layout
- Best suited for: steel covers, large access panels, machine guards, storage lids, and service doors
- Selection inputs: panel weight, center of gravity, hinge position, open angle, stroke, and mounting-point distance
- Fitting checks: flat-end hole diameter, blade thickness, bracket spacing, pivot clearance, and fastener strength
- OEM review: force tolerance, rod diameter, tube diameter, finish, salt/corrosion exposure, and sample validation
What to Confirm Before Ordering
- Check the gas spring from the installed hinge geometry, not only from the printed force on an old strut.
- Confirm that compressed length leaves clearance before the lid or cover reaches the closed position.
- Review whether one gas spring or a matched pair is needed to avoid twisting wide lids and panels.
- Use real bracket positions when estimating force because a short lever arm can require a much higher Newton rating.
Common Specification Risks
- Too much force can make closing difficult and overload hinges, brackets, or thin sheet-metal panels.
- Side load from misaligned brackets can scratch the rod, wear seals, and shorten service life.
- A gas spring that fits open length may still bottom out if compressed length is ignored.
- Replacing only one gas spring on a paired installation can cause uneven motion.
OEM Manufacturing Support
- Force, stroke, extended length, compressed length, rod finish, tube color, and end fittings can be reviewed for OEM supply.
- Samples should be tested in the final lid, hatch, cabinet, vehicle, or equipment assembly before production approval.
- Approved parts can be documented by drawing, force range, fitting style, labeling, packaging, and batch reference.
Common Applications
Customization Options
- Force and stroke selected from the actual hinge geometry.
- Flat end dimensions and mixed fitting combinations reviewed from drawings or samples.
- Rod and tube size adjusted for heavier covers or higher bracket loads.
- Finish, tube color, labels, and packaging prepared for batch production.
How to Request a Quote
Send the following information with your drawing, sample photo, or application sketch for a practical OEM gas spring recommendation.
- Cover or door weight and material
- Hinge location, open angle, and center of gravity
- Closed and open mounting distances
- Flat end drawing, hole diameter, and bracket thickness
- Required force, quantity, environment, and photos of the mechanism
Related Resources
Related Products in This Family
Product FAQ
What makes this gas spring heavy-duty?
The heavy-duty review focuses on higher force, larger rod or tube sizes where needed, stronger fitting geometry, and bracket load checks for steel lids or industrial covers.
Can a flat end fitting be used on a heavy cover?
Yes, if the bracket spacing, hole diameter, fastener strength, and pivot alignment are correct. Poor bracket alignment can overload the rod or fitting.
What should be checked before ordering samples?
Check cover weight, center of gravity, hinge position, open angle, stroke, compressed length, bracket strength, side clearance, and whether paired struts are required.
