Adjustable Position Lockable Gas Spring

Adjustable Position Lockable Gas Spring for OEM use. Review mounting, dimensions, operating conditions, and custom production with LX Gas Spring.

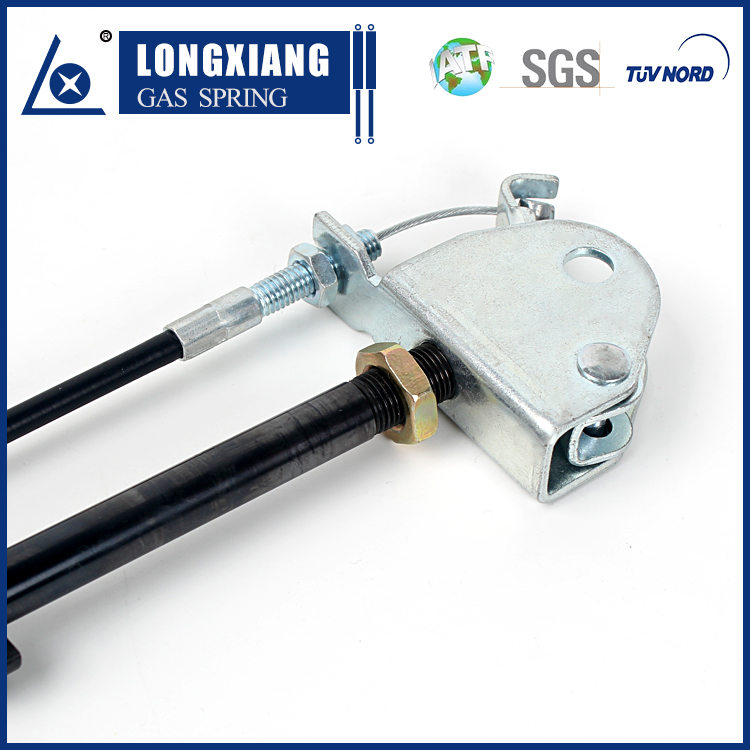

Adjustable Position Lockable Gas Spring - Lockable Gas Spring for OEM gas spring applications

Product Overview

Adjustable Position Lockable Gas Spring is intended for equipment that needs continuous adjustment through the stroke instead of only open and closed positions. For an OEM specification, the product should be reviewed as part of the complete mechanism rather than selected from appearance alone. LX Gas Spring can then match force or damping behavior, stroke, installed length, material, and end connections to the drawing or sample. Unlike a lift gas spring, which only holds at full extension, this gas spring locks at any point in its stroke. Typical uses are seat backrests, recliners, treatment chairs, height-adjustable tables and lift tables. Rigid locking holds firmly and suits tables and beds; elastic locking gives slightly and suits seating. Release is by lever, push button, threaded release head or Bowden cable.

Exact force, stroke, length, and fitting dimensions should be confirmed from your drawing, sample, or installation measurements before production.

Key Features

  • Application focus: equipment that needs continuous adjustment through the stroke instead of only open and closed positions.
  • Quality: TÜV fatigue test passed at 180,000 cycles; 3-year warranty on all LX gas springs.
  • Supports controlled adjustment and position holding along the stroke.
  • Useful for medical, furniture, vehicle accessory, and industrial positioning mechanisms.

Technical Specifications / Product Details

  • Product family: Lockable Gas Spring
  • Product-specific use: equipment that needs continuous adjustment through the stroke instead of only open and closed positions
  • Testing: force measurement, cycle endurance, and salt spray tests available in the in-house laboratory
  • End fitting reference: Lever Release
  • Force or damping requirement: confirmed from load, geometry, motion direction, and operating conditions
  • Stroke and installed length: checked at both end positions before sample approval

What to Confirm Before Ordering

  • Mark the positions where the assembly must hold, the direction of applied load, and how the operator releases the lock.
  • Check release access with the assembly loaded and at both ends of the adjustment travel.
  • Specify rigid or elastic locking, load direction, release travel, adjustment range, and acceptable movement under load.
  • Define whether the application needs rigid holding, elastic holding, or simple adjustable support before choosing a model.
  • Confirm release-control location, cable route, lever access, and operator hand position during real use.
  • Test locking behavior at the working angles users actually need, not only at full extension.
  • Check whether the gas spring supports equipment weight, user-applied load, or both.

Common Specification Risks

  • Locking force and extension force are different requirements and must be checked separately.
  • Incorrect release travel can make the lock difficult to open or unable to release fully.
  • Cable bends, tight routing, or poor lever access can make a good gas spring feel unreliable in the final product.
  • A lockable gas spring should not be treated as a normal lift strut with extra force.
  • Weak brackets can reduce locking stability even when the gas spring itself is correctly selected.

OEM Manufacturing Support

  • Locking behavior, release head, lever, cable, stroke, force, and end fittings can be matched to the OEM mechanism.
  • Medical, furniture, seating, workstation, and industrial adjustment projects should go through sample validation.
  • Production approval should record the release system, locking direction, force range, travel, mounting points, and packaging.

Common Applications

Customization Options

  • Stroke length and locked position behavior.
  • Release head, cable release, lever release, or remote actuation layout.
  • End fittings and brackets matched to the mounting geometry.
  • Force and damping feel reviewed according to load and operator comfort.

How to Request a Quote

Send the following information with your drawing, sample photo, or application sketch for a practical OEM gas spring recommendation.

  • Required positions, external load direction, permissible movement, and release arrangement
  • Application and installation photos
  • Panel, lid, or moving part weight
  • Stroke, extended length, and compressed length
  • Mounting point distance and opening angle
  • Required force or sample part number if available
  • End fitting type, quantity, and working environment

Request a Quote for Adjustable Position Lockable Gas Spring

Related Resources

Related Products in This Family

Product FAQ

Where is Adjustable Position Lockable Gas Spring typically used?

It is suitable for adjustable products where a panel, bed section, table, cover, or control surface must stay in position after adjustment.

Can the release method be customized?

Yes. LX Gas Spring can review push-button, lever, cable, or remote release layouts according to your mechanical design.

What should be included in a lockable gas spring RFQ?

Include application, load, stroke, locked position requirement, release method, mounting points, end fittings, quantity, and drawings or sample photos.
