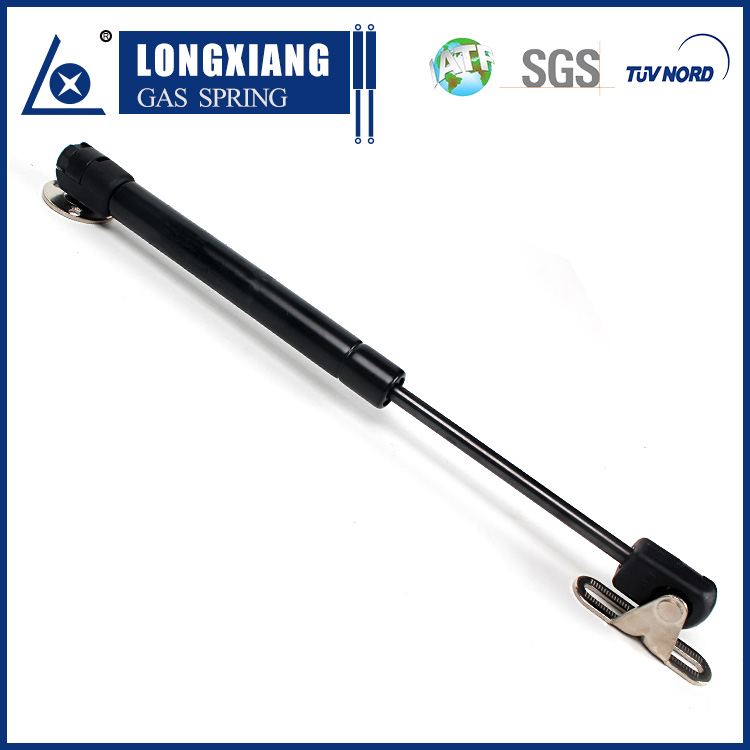

Cabinet Gas Spring with Plastic End Fittings
Cabinet Gas Spring with Plastic End Fittings for OEM use. Review mounting, dimensions, operating conditions, and custom production with LX Gas Spring.
Product Overview
Cabinet Gas Spring with Plastic End Fittings is intended for light cabinet doors and storage lids where low mass, compact fittings, and simple assembly matter. For an OEM specification, the product should be reviewed as part of the complete mechanism rather than selected from appearance alone. Confirm plastic socket material, ball size, bracket orientation, temperature, and expected opening frequency. LX Gas Spring can then match force or damping behavior, stroke, installed length, material, and end connections to the drawing or sample.
Exact force, stroke, length, and fitting dimensions should be confirmed from your drawing, sample, or installation measurements before production.
Key Features
- Application focus: light cabinet doors and storage lids where low mass, compact fittings, and simple assembly matter.
- Interface review: Confirm plastic socket material, ball size, bracket orientation, temperature, and expected opening frequency.
- Nitrogen-charged lifting support for covers, hatches, panels, and access doors.
- Configurable force, stroke, extended length, and compressed length for OEM assemblies.
Technical Specifications / Product Details
- Product family: Lift Gas Spring
- Product-specific use: light cabinet doors and storage lids where low mass, compact fittings, and simple assembly matter
- Mounting and control check: Confirm plastic socket material, ball size, bracket orientation, temperature, and expected opening frequency.
- End fitting reference: With Mounting Brackets
- Force or damping requirement: confirmed from load, geometry, motion direction, and operating conditions
- Stroke and installed length: checked at both end positions before sample approval
What to Confirm Before Ordering
- Confirm plastic socket material, ball size, bracket orientation, temperature, and expected opening frequency.
- Check the gas spring from the installed hinge geometry, not only from the printed force on an old strut.
- Confirm that compressed length leaves clearance before the lid or cover reaches the closed position.
- Review whether one gas spring or a matched pair is needed to avoid twisting wide lids and panels.
- Use real bracket positions when estimating force because a short lever arm can require a much higher Newton rating.
Common Specification Risks
- Plastic fittings should not be treated as direct substitutes for metal ends in hot or highly loaded equipment.
- Too much force can make closing difficult and overload hinges, brackets, or thin sheet-metal panels.
- Side load from misaligned brackets can scratch the rod, wear seals, and shorten service life.
- A gas spring that fits open length may still bottom out if compressed length is ignored.
- Replacing only one gas spring on a paired installation can cause uneven motion.
OEM Manufacturing Support
- Force, stroke, extended length, compressed length, rod finish, tube color, and end fittings can be reviewed for OEM supply.
- Samples should be tested in the final lid, hatch, cabinet, vehicle, or equipment assembly before production approval.
- Approved parts can be documented by drawing, force range, fitting style, labeling, packaging, and batch reference.
Common Applications
Customization Options
- Force rating matched to lid or panel weight.
- Stroke and extended length based on opening angle.
- Ball joint, blade end, clevis, eyelet, bracket, or custom fitting options.
- Surface finish, tube color, and packaging adapted for OEM production.
How to Request a Quote
Send the following information with your drawing, sample photo, or application sketch for a practical OEM gas spring recommendation.
- Cabinet door weight, ball size, cycle frequency, and installation temperature
- Application and installation photos
- Panel, lid, or moving part weight
- Stroke, extended length, and compressed length
- Mounting point distance and opening angle
- Required force or sample part number if available
- End fitting type, quantity, and working environment
Related Resources
Related Products in This Family
Product FAQ
Can Cabinet Gas Spring with Plastic End Fittings be customized for a non-standard lid or cover?
Yes. Send the lid weight, opening angle, mounting point distance, stroke target, and photos or drawings so the force and end fittings can be reviewed for your assembly.
What information is needed before quoting this lift gas spring?
Useful RFQ details include application, panel weight, extended length, compressed length, stroke, mounting points, end fitting type, quantity, and working environment.
Which resources help with initial sizing?
Start with the gas spring force calculator and dimensions guide, then confirm final geometry with LX Gas Spring before production.
