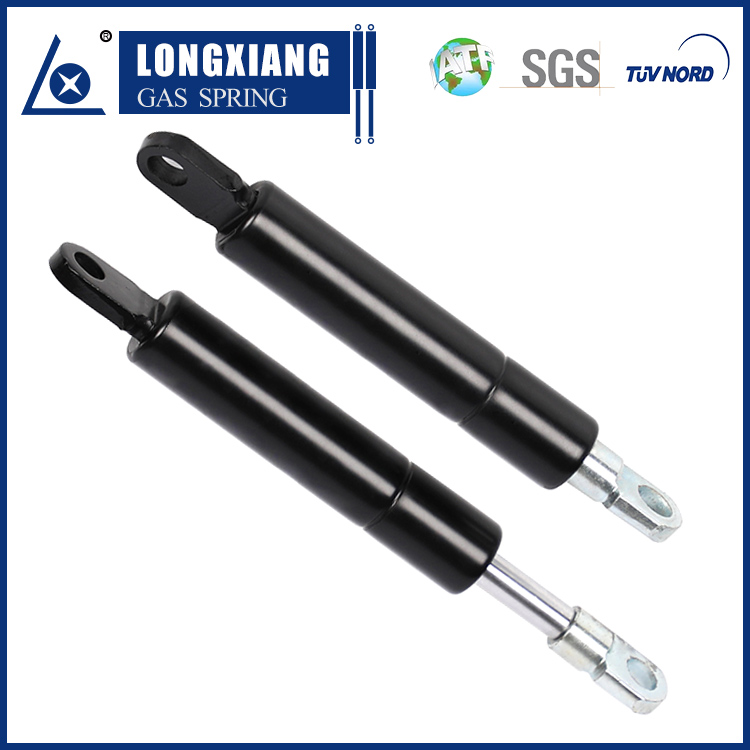

Hydraulic Damper
Hydraulic Damper for OEM damper applications. Review mounting, dimensions, operating conditions, and custom production with LX Gas Spring.
Product Overview
Hydraulic Damper is intended for general velocity control where a lid, panel, or mechanism must slow down without adding lift force. For an OEM specification, the product should be reviewed as part of the complete mechanism rather than selected from appearance alone. Define damping direction, moving mass, starting speed, stroke, installed angle, end speed, and temperature range. LX Gas Spring can then match force or damping behavior, stroke, installed length, material, and end connections to the drawing or sample.
Exact force, stroke, length, and fitting dimensions should be confirmed from your drawing, sample, or installation measurements before production.
Key Features
- Application focus: general velocity control where a lid, panel, or mechanism must slow down without adding lift force.
- Interface review: Define damping direction, moving mass, starting speed, stroke, installed angle, end speed, and temperature range.
- Controlled damping for lids, covers, compartments, and soft-motion assemblies.
- Helps reduce impact, noise, and uncontrolled closing in mechanical systems.
Technical Specifications / Product Details
- Product family: Damper
- Product-specific use: general velocity control where a lid, panel, or mechanism must slow down without adding lift force
- Mounting and control check: Define damping direction, moving mass, starting speed, stroke, installed angle, end speed, and temperature range.
- End fitting reference: confirmed from drawing or sample
- Force or damping requirement: confirmed from load, geometry, motion direction, and operating conditions
- Stroke and installed length: checked at both end positions before sample approval
What to Confirm Before Ordering
- Define damping direction, moving mass, starting speed, stroke, installed angle, end speed, and temperature range.
- Decide whether the application needs lift support, damping, or both before selecting a component.
- Describe the direction of motion, moving weight, stroke, desired speed, and the point where impact must be reduced.
- Send a short video when damping feel is important because motion speed is difficult to judge from dimensions alone.
- Check installed length and end fittings through the full travel to avoid binding.
Common Specification Risks
- A damper is not a hold-open device and should not be sized as though it supports the full static load.
- A damper selected as if it were a lift gas spring may not hold the lid or cover open.
- Incorrect damping direction can control the wrong part of the movement.
- Too much damping can make the mechanism feel stiff or slow during normal use.
- Poor mounting alignment can cause side load and inconsistent damping behavior.
OEM Manufacturing Support
- Damping direction, stroke, installed length, fittings, and motion feel can be reviewed from samples or application videos.
- RV, toolbox, waste-bin, furniture, and equipment-cover projects often need sample testing for user feel.
- Production details should record the damping requirement, orientation, end fitting style, packaging, and replacement reference.
Common Applications
Customization Options
- Damping direction and motion feel reviewed according to the mechanism.
- Stroke and installed length matched to available space.
- Ball joint, blade end, washer, or bracket-style connection options.
- Sample-based matching when replacing an existing camper or compartment damper.
How to Request a Quote
Send the following information with your drawing, sample photo, or application sketch for a practical OEM gas spring recommendation.
- Moving mass, motion video, travel time, damping direction, and temperature range
- Application and installation photos
- Panel, lid, or moving part weight
- Stroke, extended length, and compressed length
- Mounting point distance and opening angle
- Required force or sample part number if available
- End fitting type, quantity, and working environment
Related Resources
Related Products in This Family
Product FAQ
Is Hydraulic Damper used for lifting or damping?
It is primarily used for damping and controlled motion. If lift assistance is also required, LX Gas Spring can review whether a gas spring, damper, or combined solution is more suitable.
What should be sent for a damper quotation?
Send application photos, installed length, stroke, mounting type, lid weight if known, desired motion speed, quantity, and any sample part photos.
Can this damper be matched to camper or RV compartment hardware?
Yes. Photos, dimensions, and sample details help confirm a practical replacement or OEM damping option.
