Industrial Safety Guard Gas Struts: Selection and Mounting Guide
Specify industrial gas struts for machinery safety guards and access panels with load, geometry, bracket, opening-control, and validation guidance.
Why Safety-Guard Geometry Comes First

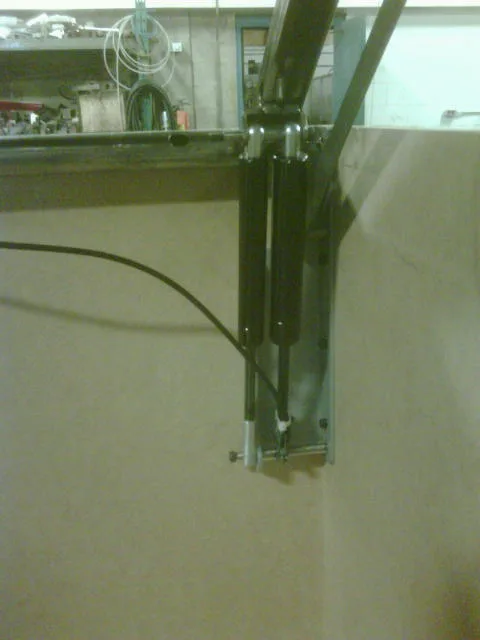

Industrial gas struts are commonly used to support machinery guards, access covers, electrical enclosures, service doors, inspection panels, and protective hoods. The objective is not simply to make a panel feel lighter. A well-specified system should make the required opening motion manageable, avoid uncontrolled movement, preserve access for service work, and keep force within the guard, hinge, bracket, and fastener design limits.
Start with the installed mechanism. Record the moving mass, centre of gravity, hinge axis, closed and open angles, available cylinder envelope, and the proposed locations of both mounting points. A panel with the same mass can need a very different gas strut force when its hinge position or bracket geometry changes. Use the gas spring force calculator for a preliminary estimate, then validate the design with the actual guard.
Define the Required Motion
The critical positions are often near closed and near full open. Near closed, the strut may have little mechanical leverage. Near open, a light guard can accelerate rapidly if force and damping are not matched to the mechanism. Define whether the operator needs a controlled opening, controlled closing, a stable service position, or a separate positive hold-open device.
A gas strut should not be treated as the only safeguard for a panel that could create an injury hazard if it fell or moved unexpectedly. The equipment designer should assess pinch zones, stored energy, access conditions, lockout procedures, and any independent mechanical support required by the machine or site safety process.
Check Brackets, Fittings, and Alignment
Gas spring force is transmitted through the end fittings into the mounting brackets. Select fittings that permit the required articulation throughout travel, and keep side load away from the piston rod. Ball joints can accommodate changing angles, while eyelets, clevises, and blade ends require a bracket geometry that keeps the assembly in its intended plane. The end fittings guide explains the questions to resolve before finalizing an interface.
Evaluate the brackets and fasteners at the highest load condition, not only at mid-stroke. Check hole edge distance, material thickness, weld or fastening design where applicable, access for installation, and clearances through the full motion. A practical sample test can reveal interference, binding, and over-travel that a drawing alone may miss.
Account for the Operating Environment
Industrial applications can involve vibration, dust, moisture, process chemicals, heat, or outdoor exposure. State the actual exposure, cleaning process, temperature range, and expected use pattern in the request. That information allows the engineering team to review material, coating, seal, fitting, and mounting requirements without assuming performance claims that the finished machine has not validated.
Keep the rod clean and protect it from impact, paint overspray, and abrasive contamination. A damaged rod or misaligned fitting can shorten the life of a sealed gas strut. During maintenance, independently support the guard before removing a strut; do not drill, heat, crush, or disassemble a pressurized unit.
Information to Send for an RFQ
For an industrial safety-guard quotation, send a drawing or photos of the guard in open and closed positions, moving mass, hinge and mounting coordinates, desired open angle, number of struts, available space, end-fitting preference, environment, and expected annual quantity. If an existing strut is being replaced, also record its extended length, compressed length, stroke, force marking, and fitting dimensions.
Review the industrial equipment gas spring application page for the commercial application scope, compare available gas spring product families, and send the specifications to the engineering team for an application review.
Frequently Asked Questions
Can a gas strut hold a machine guard open safely?
It can support the intended motion when correctly specified, but the machine designer must decide whether independent mechanical retention or other safety measures are required for the hazard and service procedure.
What is the most important measurement for a guard strut?
There is no single measurement. Force, extended length, compressed length, stroke, hinge geometry, and the two mounting points work together and should be recorded as one system.
Should I replace both struts on a two-strut guard?
When balanced motion matters, replacing a pair together is generally the more consistent approach. Confirm the final selection against the real guard and its mounting geometry.
